FeelWorld FR6+FT6 Two 5.5" On-Camera Monitors With Wireless Transmitter & Receiver System

825.00
Adophoto
AD-12538
Σε απόθεμα - Παράδοση 1 έως 3 ημέρες
+

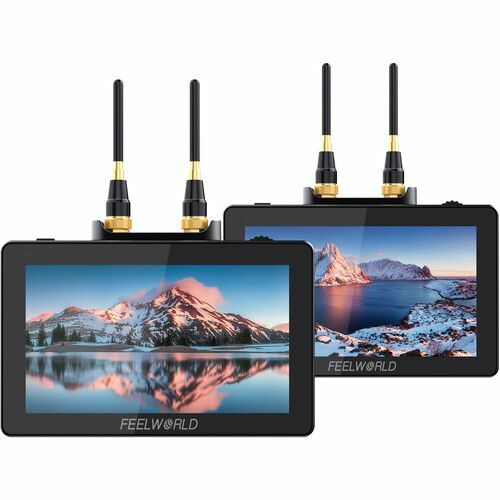

The FeelWorld Two 5.5" On-Camera Monitors with Wireless Transmitter & Receiver System includes a 5.5" monitor with an integrated wireless transmitter and a 5.5" monitor with an integrated receiver. The monitors transmit and receive video with a resolution up to 1080p, though they will each support a 4K signal directly through the HDMI input. The monitors both feature a touchscreen display with a 1920 x 1080 resolution and a brightness of 500 cd/m². Each monitor comes with four built-in LUTs for monitoring HDR footage in Rec. 709, and you can upload up to 50 user LUTs to choose from for monitoring your image.

Multiple power options include a 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, and a USB Type-C port that allows you to upload .cube format logs with an optional USB Type-A to Type-C adapter. Two L-series battery slots allow you to hot-swap batteries for uninterrupted runtimes. A single 1/4"-20 mounting thread is provided on the bottom for mounting. Each monitor includes a removable sunshade to protect from glare and bright skies.

FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Receiver

The FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Receiver features a touchscreen display with a 1920 x 1080 resolution and brightness of 500 cd/m². The monitor receives up to a 1080p signal, which can be transmitted by an optional FeelWorld FT6 wireless receiver/monitor combo. It has an HDMI input port that supports signals up to DCI 4K24 and UHD 4K30, and an HDMI output for connecting to local monitors and other devices. The monitor comes with four built-in LUTs for monitoring HDR footage in Rec. 709, and you can upload up to 50 user LUTs to choose from for monitoring your image.

A large set of software features includes waveform, vectorscope, histogram, and anamorphic mode. These can be accessed via the menu wheel on top of the monitor. The menu system is simple, with touchscreen tabs on the sides and a clean look, and it provides a live view of most settings as you go through the tabs, including in the LUT tab where log profiles are selectable.

Multiple power options include a 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, and a USB Type-C port that allows you to upload .cube format logs with an optional USB Type-A to Type-C adapter. Two L-series battery slots allow you to hot-swap batteries for uninterrupted runtimes. A single 1/4"-20 mounting thread is provided on the bottom for mounting. The monitor includes a removable sunshade to protect from glare and bright skies.

Key Features Receives 1080p video to an optional FT6 monitor Touchscreen display with a 1920 x 1080 resolution 500 cd/m² brightness HDMI input signals up to DCI 4K24 and UHD 4K30 Software Features Supports 3D LUT Log to Rec. 709, user 3D LUT upload Supports up to 50 user-uploadable LUTs HDR monitoring Support touch menu Parade (RGB, YUV, Y) Vector Brightness histogram Peaking focus assist (red, green, blue, white, yellow, five peaking colors optional; 1~10 peaking level adjustable) False colors Exposure (1~100%, adjustable) Check field (red, green, blue, gray) Scan mode (underscan, overscan) Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) Flip H / Flip V (all open, H/V flip) Image freeze Nine-grid Center marker Safety marker (70/80/90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) Marker Color (red, green, blue, white, black, yellow) Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) Color temperature adjustment Zoom (100~300%) Aspect ratio Pixel-to-pixel FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Transmitter

The FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Transmitter features a touchscreen display with a 1920 x 1080 resolution and brightness of 500 cd/m². The monitor transmits up to a 1080p signal, which can be received by an optional FeelWorld FR6 wireless transmitter/monitor combo. It has an HDMI input port that supports signals up to DCI 4K24 and UHD 4K30, and an HDMI output for connecting to local monitors and other devices. The monitor comes with four built-in LUTs for monitoring HDR footage in Rec. 709, and you can upload up to 50 user LUTs to choose from for monitoring your image.

A large set of software features includes waveform, vectorscope, histogram, and anamorphic mode. These can be accessed via the menu wheel on top of the monitor. The menu system is simple, with touchscreen tabs on the sides and a clean look, and it provides a live view of most settings as you go through the tabs, including in the LUT tab where log profiles are selectable.

Multiple power options include a 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, and a USB Type-C port that allows you to upload .cube format logs with an optional USB Type-A to Type-C adapter. Two L-series battery slots allow you to hot-swap batteries for uninterrupted runtimes. A single 1/4"-20 mounting thread is provided on the bottom for mounting. The monitor includes a removable sunshade to protect from glare and bright skies.

Key Features Transmits 1080p video to an optional FR6 monitor Touchscreen display with a 1920 x 1080 resolution 500 cd/m² brightness HDMI input signals up to DCI 4K24 and UHD 4K30 Software Features Supports 3D LUT Log to Rec. 709, user 3D LUT upload Supports up to 50 user-uploadable LUTs HDR monitoring Support touch menu Parade (RGB, YUV, Y) Vector Brightness histogram Peaking focus assist (red, green, blue, white, yellow, five peaking colors optional; 1~10 peaking level adjustable) False colors Exposure (1~100%, adjustable) Check field (red, green, blue, gray) Scan mode (underscan, overscan) Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) Flip H / Flip V (all open, H/V flip) Image freeze Nine-grid Center marker Safety marker (70/80/90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) Marker Color (red, green, blue, white, black, yellow) Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) Color temperature adjustment Zoom (100~300%) Aspect ratio Pixel-to-pixel

Package Include

Standard Accessories

1× Micro HDMI Cable
2× Sunshade
1× Hot Shoe Mount
4× Transmission Antenna
1× Type-C to USB
1× Handle, 2× Screw
1× Lanyard
1× 1/4 C-ring Screw
1× Small Carrying Case
1× Manual
1× Operation Manual

LCD Panel Size: 5.5" / 13.9 cm
Resolution: 1920 x 1080
Pixel Pitch: 0.0639 x 0.0213 mm
Aspect Ratio: 16:9
Brightness: 500 cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 160° L/R, U/D
Input and Output Connectors Input
1 x HDMI Type-A

Output
1 x HDMI Type-A
1 x 3.5 mm (Audio, Headphone)
Video 4096 x 2160: 24
3840 x 2160: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/60
720p: 50/59.904/60
576p: 50/59.904/60
576i: 50/59.904/60
480p: 50/59.904/60
Wireless Frequency: 5.1 to 5.9 GHz
System Latency: 70 ms
Transmission Range: 820.21' / 250 m
Power Input Voltage: 7 to 24 VDC
Consumption: 18 W
Output: 8 VDC
2 x Integrated L-Series Battery Plates
Mounting 3 x 1/4"-20
Dimensions 5.8 x 4.07 x 1.6" / 14.8 x 10.35 x 4.1 cm
Weight 13.05 oz / 370 g
Packaging Info
Package Weight 1.705 lb
Box Dimensions (LxWxH) 7.4 x 5 x 3.5"

FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Transmitter Specs

Display

Panel Type LCD
Display Size 5.5" / 14.0 cm
Resolution 1920 x 1080
Aspect Ratio 16:09
Touchscreen Yes
Image Controls Anamorphic De-Squeeze, False Color, Focus Assist, Histogram, Image Flip, Pixel Zoom, Vectorscope, Waveform, Zebra
I/O

Antenna Ports 2 x RP-SMA
Video 1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output
HDCP Support Not Specified by Manufacturer
Embedded Audio HDMI
Audio 1 x 1/8" / 3.5 mm Headphone Output
Power 1 x Barrel (12 VDC) Input
1 x Barrel (8 VDC) Output
Other I/O 1 x USB Type-C Input
Media/Memory Card Slot Not Specified by Manufacturer
Wireless

Wireless Range 800' / 243.8 m (Line-of-Sight)
Frequency Range US: 5.1 to 5.9 GHz
Latency 70 ms
Wi-Fi None
Bluetooth Not Specified by Manufacturer
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
Audio Format PCM Audio
Wireless Video Compression Compressed
Timecode Support No
Power

DC Input Power 12 VDC
Battery Type 2 x L-Series
Power Consumption 18 W
Mounting
Mounting 1 x 1/4"-20 Female
Environmental
IP Rating None
Operating Temperature -4 to 131°F / -20 to 55°C
Storage Temperature -22 to 149°F / -30 to 65°C
