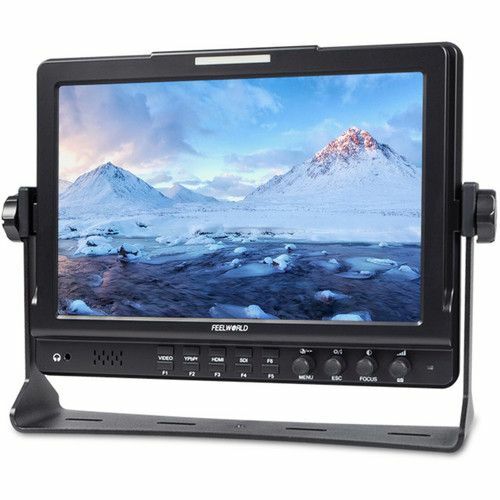

FeelWorld FW1018PV1 10" 4K IPS Professional HDMI Field Monitor

The 10" 4K IPS Professional HDMI Field Monitor from FeelWorld allows you to frame your shots with accuracy using its large, 10" screen, 1920 x 1200 resolution, and numerous image analysis tools. It features 1/4"-20 threads for mounting onto your camera or camera rig, and it comes with a U-bracket so you can use it on a desktop. A sunshade is also included that prevents glare and reflections, so you can clearly monitor your image outdoors.

The monitor features HDMI, composite, and component video inputs and outputs, RCA audio inputs, a tally input, a headphone jack, and a speaker. It supports up to DCI 4K resolution signals at 24 fps via the HDMI input. Up to six of the image analysis tools such as histogram, peaking, false colors, or zebra can be assigned to the function buttons on the front panel. An L-series battery plate comes included with the monitor but can be switched out for optional LP-E6, D28S, V-mount, or Gold mount plates. A battery is sold separately.

Key Features 1920 x 1200 screen resolution 170° IPS viewing angle HDMI and analog inputs and outputs Audio and tally inputs Headphone jack and speaker Supports up to DCI 4K resolution signals at 24 fps via HDMI Six assignable function buttons on front panel L-series battery plate (interchangeable; D28S, LP-E6, V-mount, or Gold mount plates supported) 320 cd/m² brightness 800:1 contrast ratio Image Analysis Brightness histogram Peaking focus assist False colors Zebra exposure (1-100 IRE adjustable) Audio level meters for embedded audio monitoring Check field (red, green, blue, mono) Camera mode Anamorphic mode (1.3x, 2.0x, 2.0x) - allows you to see the image unsqueezed, even if your camera does not de-squeeze in-camera Image flip (H, V, H/V) Image freeze Center marker Screen marker (80%, 85%, 90%, 93%, 96%, 2.35:1) Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) Color temperature adjustment Nine-grid (zoom in on an image to up to full screen - up to 1080p input only) Zoom (4x, 9x, 16x - up to 1080p input only) Pixel-to-pixel (up to 1080p) Zoom-all (up to 1080p) U/D zoom (up to 1080p) L/R zoom (up to 1080p)

Panel Type	IPS-Type LCD
Display Size	10.0" / 25.4 cm
Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 170° (85/85)
Vertical: 170° (85/85)
Touchscreen	No
Maximum Brightness	320 cd/m2
Contrast Ratio	800:01:00
Dot Pitch	0.113 x 0.113 mm
HDR Compatibility	None
Pixels Per Inch (ppi)	226 ppi
Real-Time LUT Monitoring	No
Image Controls	False Color, Histogram, Zebra
I/O
Video	1 x HDMI Type A (HDMI 1.4) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x HDMI Type A (HDMI 1.4) Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
Audio	1 x 2RCA Input
Built-In Speaker	1
Power	1 x 4-Pin XLR Input
Other I/O	1 x Tally (DE-9/DB-9)
Media/Memory Card Slot	None
Wi-Fi	None
Format Support
Video Format	HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p
480i
576i
Power
DC Input Power	6 to 36 VDC
Built-In Battery	None
Battery Type	1 x L-Series (Interchangeable Mount)
Power Consumption	12 W (Maximum)
Mounting
Mounting	3 x 1/4"-20 Female
Environmental
Operating Temperature	-4 to 131°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C
General
Dimensions	10.2 x 7.5 x 1.6" / 26 x 19 x 4 cm
Weight	1.76 lb / 0.8 kg
Warranty Length	Limited 1-Year Warranty
