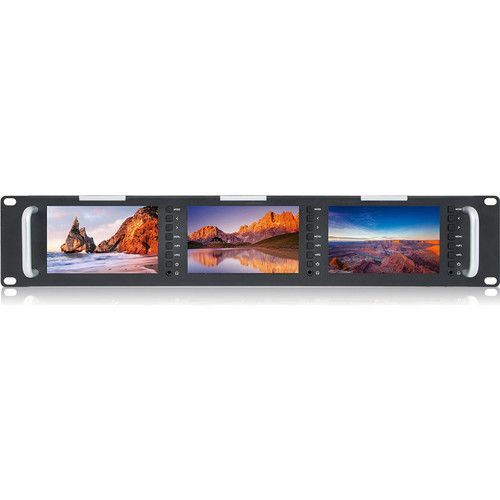

FeelWorld T51 Triple 5" 2 RU 3G-SDI/HDMI Rackmount Monitor

The FeelWorld T51 features three 5" 800 x 480 resolution displays in a slim, all-metal 2 RU rackmount. The rear panel has three sets of 3G-SDI, HDMI, and composite BNC inputs and outputs, three sets of RCA audio inputs, and a single tally port. A three-color tally light is provided on top of each display on the front panel, and a headphone output is available per display for audio monitoring. For power, the T51 has both a DC barrel input and 4-pin XLR input, and a power adapter is included for the barrel input. Monitoring features include peaking, pixel-to-pixel, zoom all, and custom color temperature.

Key Features Three 5" displays in a slim, all-metal 2 RU rackmount with cast-iron handgrips 800 x 480 resolution Three 3G-SDI inputs and outputs Three HDMI inputs and outputs Three composite BNC inputs and outputs Three L/R RCA audio inputs Tally port Three headphone outputs Three-color tally light on top of each display 500 cd/m² brightness 500:1 contrast 140/120° viewing angle DC barrel and 4-pin XLR power inputs DC power adapter included Monitoring Features Peaking focus assist Check field (red, green, blue, mono) Pixel-to-pixel Center marker Safe marker (80, 85, 90, 93, 96, 2.35:1) Image flip (horizontal, vertical, horizontal/vertical) Image freeze Zoom all U/D and L/R zoom Custom color temperature

Panel Type	TFT LCD
Display Size	5.0" / 12.7 cm
Screen Resolution	800 x 480
Aspect Ratio	16:09
Viewing Angle	Horizontal: 140° (70/7)
Vertical: 120° (50/70)
Touchscreen	No
Maximum Brightness	500 cd/m2
Contrast Ratio	500:01:00
Dot Pitch	0.045 x 0.135 mm
I/O
Video	3 x BNC (HD-SDI/3G-SDI/SD-SDI) Input
3 x HDMI Type A Input
3 x BNC (Composite) Input
3 x BNC (HD-SDI/3G-SDI/SD-SDI) Output
3 x HDMI Type A Output
3 x BNC (Composite) Output
Audio	3 x 2RCA Input
3 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	None
Power	1 x Barrel (3 A / 12 VDC) Input
1 x 4-Pin XLR (3 A / 12 VDC) Input
Other I/O	1 x Tally (DE-15/DB-15)
3 x Mini-USB
Card Slot	None
Format Support
Video Format	SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
576p
480p
576i
480i
Power
DC Input Power	9 to 24 VDC
Battery Type	None
Power Consumption	25 W (Maximum)
Mounting
Rack Form Factor	2 RU
Environmental
Operating Temperature	-4 to 131°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C
General
Dimensions	19 x 3.5 x 1.3" / 48.3 x 8.8 x 3.4 cm
Weight	3.46 lb / 1.57 kg
